The GIOVE-A satellite meets its Starsem Soyuz launch vehicle

December 23, 2005

Europe's first Galileo demonstrator satellite has begun the final assembly process with its launch vehicle as mission activity at Kazakhstan's Baikonur Cosmodrome shifts to the MIK 40 Soyuz integration facility.

Our images below detail the GIOVE-A satellite's first contact with Soyuz, keeping preparations on track for a liftoff in the morning hours of December 28. (Click on the photos for a larger version).

---

The Soyuz launcher's third stage (at right) is ready for contact with the GIOVE-A satellite and its Fregat upper stage (which are encapsulated in the white payload fairing) as the final integration begins for Starsem's year-ending mission in 2005. This activity took place in the MIK 40 integration hall for Soyuz, where the GIOVE-A/Fregat combination was transferred overnight from Starsem's dedicated clean facilities. The 600-kg. GIOVE-A is the first of two validation spacecraft for Europe's new Galileo satellite-based navigation and positioning system.

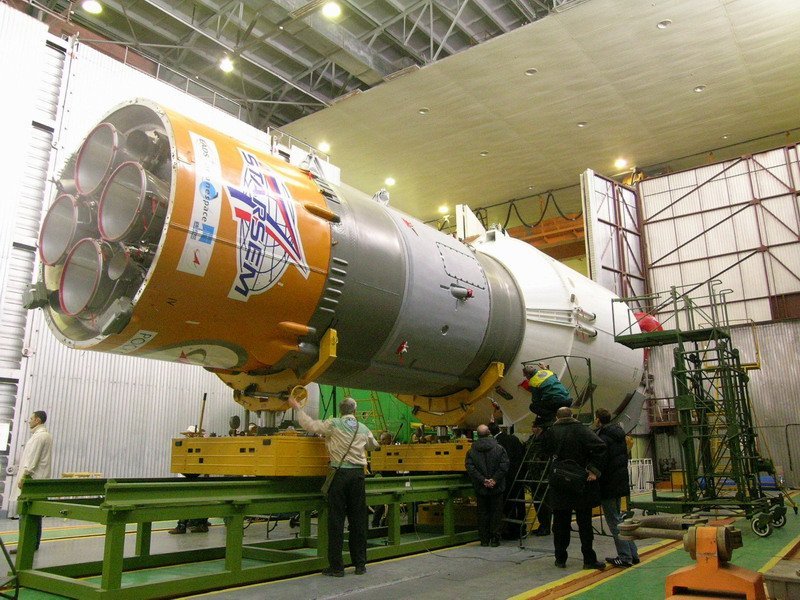

This view shows the Soyuz third stage after its integration with GIOVE-A and the Fregat upper stage. The third stage uses a RD-0110 engine with four combustion chambers and nozzles. Three-axis flight control for the stage and its payload is provided by four vernier nozzles. Third stage ignition will occur at 4 min. 46 sec. into the mission, and it will burn for four minutes. The full duration of Starsem's flight with GIOVE-A is set at approximately 3 hr. 42 min., which includes three burns of the Fregat upper stage.

The Soyuz S-type payload fairing containing GIOVE-A and the Fregat upper stage is covered with temporary insulation blankets, completing its integration with the Soyuz launcher's third stage. These blankets will provide thermal protection while the completed Soyuz vehicle is transferred to launch pad #6 and prepared for liftoff, and they will be removed during the final countdown. Liftoff of Starsem's 15th commercial Soyuz flight remains on schedule for December 28 at 11:19 a.m. local time (5:19 a.m. GMT, 8:19 a.m. Moscow time, and 6:19 a.m. in Paris).

For additional information on the successful Starsem GIOVE-A launch, review the previous updates, along with the post-mission press release and Starsem's official launch kit.
